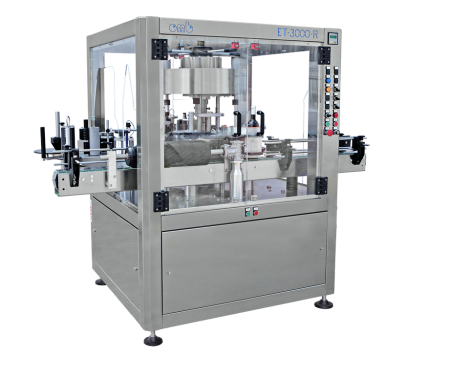

Rotary labelling machine mod. ET 3000 AUT

Automatic rotary labeller for attaching adhesive labels to bottles or cylindrical or square containers of wine, beverages, foodstuffs in general and cosmetics, consisting of: a body labelling station; 4 bottle-carrier plates; an inverter; an automatic speed control; a label distributor with a stepping motor;  end of roll photocell; overflow photocell at inlet and outlet. The rotary labeller is delivered ready for including in the bottling line and equipped for a given type of bottle.

Made entirely of stainless steel, it is solid and strong and based on an advanced technology, achieving a high output. Designed for maximum operator safety and ease of use, it is quick to adjust and complete with safety shields.

Working direction from left to right

Output: 3000 bottles per hour

  • -station for back label
    -station for DOCG round label or neckband
    -turret station for transferring and attaching biadhesive DOCG neck bands or “I”-shaped labels
    -plate drive motors
Rotary labeller mod. ET 4000 AUT
Rotary labeller mod. ET 4000 AUT

Six bottle-carrier plates
Output: 4000 bottles per hour

Rotary labeller mod. ET 6000 AUT
Rotary labeller mod. ET 6000 AUT

Output: 6000 bottles per hour
