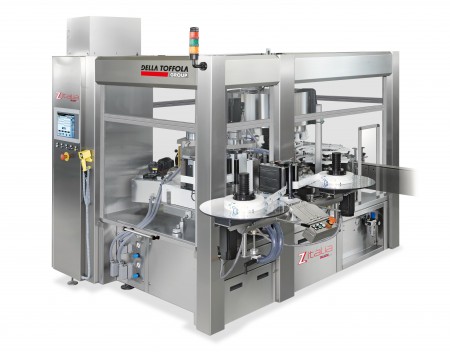

Roll-fed labellers Z-Roll-fed

Roll-fed labellers are hot-melt rotary labeller that applie plastic or paper wrap-around labels from a reel on cylindrical or shaped containers, either empty or full.
The servomotor in the labelling unit accurately controls the stretching of the film, which is unwound, cut and transferred to the container with vacuum technology. The stainless steel glue roll distributes the glue on the edges of the labels. The roll’s design ensures a minimum consumption of glue.
Main fields of application are: beverages, mineral water, food, milk, chemical
 Production speed: from 8,000 to 72,000 bph with one labelling unit.
Features

The glue roll is operated by a servomotor and secured to the horizontal mobile support that moves back and forth in relation to the presence of the bottle that needs to the labelled (no bottle no label)
The glue tank has a new filtering system that prevents any labelling residues from entering and obstructing the supply
The double reel support is operated by servomotors. It allows you to process a wide range of materials differing in quality and thickness
System used to load reels vertically (HERCULES)
  • Servomotor-operated infeed screw
    Motorized belt to rotate the plates
 Optional features
Automatic reel splicing for continuous operation
Drying or heat-shrinking tunnel
Hercules, vertical reel loading system
Labelling quality control system
Electronic orientation system
Pressurization system to process empty bottles
MADE by Z ITALIA
